Q8-2000A-Latent Mobile Robot (LMR)-Backpack Latent Mobile Robot – Lifting Type

A lifting LMR is an automated logistics device capable of autonomous loading, lifting, and transportation. Characterized with a lifting device, it can lift goods from the ground to a higher position to perform carrying and storage tasks. It is commonly used in industrial and warehousing logistics scenes to effectively improve productivity and reduce logistics costs.

Chat Now

100

Lifting stroke (mm)

2000

Rated load (kg)

1780

Rotation diameter (mm)

6-8

Run time (h)

Product Details

Key Features

High extensibility

Extension modules and assemblies: supports rapid delivery and convenient operation

Various hardware third-party devices: one-stop configurable third-party devices

High flexibility

Intelligent integrated sensing: integrated sensing with data from multiple sensors

Precise controlling: high-accuracy motions and docking

Multiple navigation modes switching: switching among V-SLAM, L-SLAM, and 2D barcode navigation modes

Multi-safety protection: multi-directional stereoscopic protection and multiple safety protection measures

Strong adaptability to scenes

High load/weight ratio: outstanding loading capacity

Long endurance: high transmission efficiency and long battery life

Strong adaptability to carriers: flexibly transfers carriers in various sizes

Cluster collaboration: provides scheduling and carrying in large scale clusters

Application Cases

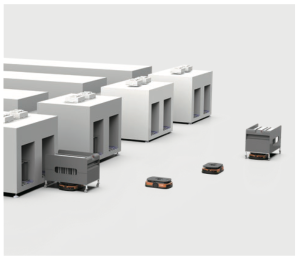

Photovoltaic cell carrying	Lithium PACK line carrying

Basic Parameter	Navigation mode	2D barcode / L-SLAM / V-SLAM
	Dimension (L × W × H) (mm)	15231150327
	Rotation diameter (mm)	1780
	Chassis above ground (mm)	25
	Lifting platform dimension (mm)	1250*1000
	Lifting stroke (mm)	100
	Lifting structure type	Hydraulic
	Weight (kg)	550
	Rated load (kg)	2000
	Human-machine interaction	Touchscreen
Safety Protection	Front protection	Laser
	Rear protection	–
	Side protection	–
	Sound and light alarm	Support
	Laser clearance lamp	–
	Bumper strip	Support
	Emergency stop button	Support
Motion Performance	Rated running speed (empty) (mm/s)	940
	Rated acceleration (empty) (mm/s2)	500
	Positioning accuracy (mm)/(°	± 10 / ± 1
Battery Performance	Run time (h)	6-8
Battery Performance	Charging time (h)	≤ 1.5
