Products

Q7B-1000E-Latent Mobile Robot (LMR)-Backpack Latent Mobile Robot - Lifting Type

A lifting LMR (Laser-guided Mobile Robot) is an advanced automated logistics solution designed for independent loading, elevation, and material transport. Equipped with an integrated lifting mechanism, it can elevate items from ground level to higher positions, enabling seamless handling and storage operations. Ideal for industrial and warehouse environments, this technology significantly boosts operational efficiency while lowering logistics expenses.

/

Lifting stroke (mm)

1000

Rated load (kg)

1200

Rotation diameter (mm)

6-8

Run time (h)

Product Details

Key Features

Scalable Design

Modular Expansion: Supports quick deployment and user-friendly operation with customizable add-ons.
Third-Party Integration: Offers seamless compatibility with a wide range of configurable external hardware.

Adaptive Performance

Smart Sensor Fusion: Combines data from multiple sensors for enhanced environmental awareness.
Precision Motion Control: Delivers high-accuracy movements and seamless docking capabilities.
Dynamic Navigation: Effortlessly switches between V-SLAM, L-SLAM, and 2D barcode navigation for versatile operation.
Comprehensive Safety: Features multi-directional 3D protection and layered safety protocols for secure performance.

Scene-Ready Versatility

High Load Efficiency: Exceptional capacity-to-weight ratio for superior payload handling.
Extended Operation: Optimized energy transmission and long-lasting battery performance.
Carrier Flexibility: Effortlessly handles carriers of diverse shapes and sizes.
Collaborative Scalability: Enables large-scale cluster coordination for efficient scheduling and material transport.

Application Cases

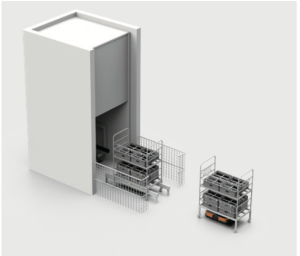

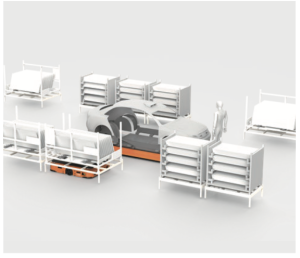

Automotive parts carrying	3C warehouse carrying

Basic Parameter	Navigation mode	20 barcode/L-SLAM /V-SLAM
	Dimension (L × W × H) (mm)	1150820300
	Rotation diameter (mm)	1200
	Chassis above ground (mm)	25
	Lifting platform dimension (mm)	/
	Lifting stroke (mm)	/
	Lifting structure type	/
	Weight (kg)	184
	Rated load (kg)	1000
	Human-machine interaction	Digital tube
Safety	Front protection	Laser
	Rear protection	–
	Side protection	–
	Sound and light alarm	Support
	Laser clearance lamp	–
	Bumper strip	Support
	Emergency stop button	Support
Motion Performance	Rated running speed (empty) (mm/s)	2000
	Rated acceleration (empty) (mm/s2)	1000
	Positioning accuracy (mm)/(°	± 10 / ± 1
Battery Performance	Run time (h)	6-8
Battery Performance	Charging time (h)	≤ 1.5
