A lifting LMR is an automated logistics device capable of autonomous loading, lifting, and transportation. It is characterized by a lifting mechanism that can elevate goods from the ground to a higher position to perform carrying and storage tasks. It is lightweight and compact with a high cost-performance ratio. Commonly used in industrial and warehousing logistics scenarios, it is widely applicable across various industries, effectively improving productivity and reducing logistics costs.
820
6-8
Key Features
High extensibility
• Extension modules and assemblies: supports rapid delivery and convenient operation
• Various hardware third-party devices: one-stop configurable third-party devices
High flexibility
• Intelligent integrated sensing: integrated sensing with data from multiple sensors
• Precise controlling: high-accuracy motions and docking
• Multiple navigation modes switching: switching among V-SLAM, L-SLAM, and 2D barcode navigation modes
• Multi-safety protection: multi-directional stereoscopic protection and multiple safety protection measures Strong adaptability to scenes
• High load/weight ratio: outstanding loading capacity
• Long endurance: high transmission efficiency and long battery life
• Strong adaptability to carriers: flexibly transfers carriers in various sizes
• Cluster collaboration: provides scheduling and carrying in large scale clusters

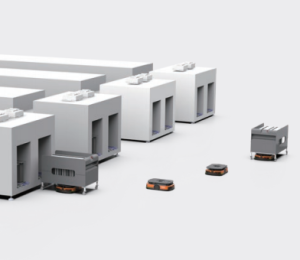

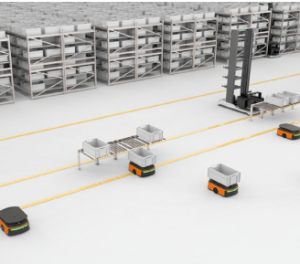

Application Case
| Photovoltaic cell carrying | 3C warehouse carrying |
 |  |
| Basic Parameter | Navigation mode | 20 barcode/L-SLAM /V-SLAM |
| Dimension (L × W × H) (mm) | 780*545*300 | |
| Rotation diameter (mm) | 820 | |
| Chassis above ground (mm) | 30 | |
| Lifting platform dimension (mm) | 724*504 | |
| Lifting stroke (mm) | 60 | |
| Lifting structure type | Electric | |
| Weight (kg) | 93 | |
| Rated load (kg) | 400 | |
| Human-machine interaction | Touchscreen | |
| Safety Protection | Front protection | Laser |
| Rear protection | – | |
| Side protection | – | |
| Sound and light alarm | Support | |
| Laser clearance lamp | – | |
| Bumper strip | Support | |
| Emergency stop button | Support | |
| Motion Performance | Rated running speed (empty) (mm/s) | 2000 |
| Rated acceleration (empty) (mm/s2) | 800 | |
| Positioning accuracy (mm)/(° | ± 10 / ± 1 | |
| Battery Performance | Run time (h) | 6-8 |
| Charging time (h) | ≤ 1.5 |
 |  |
