Products

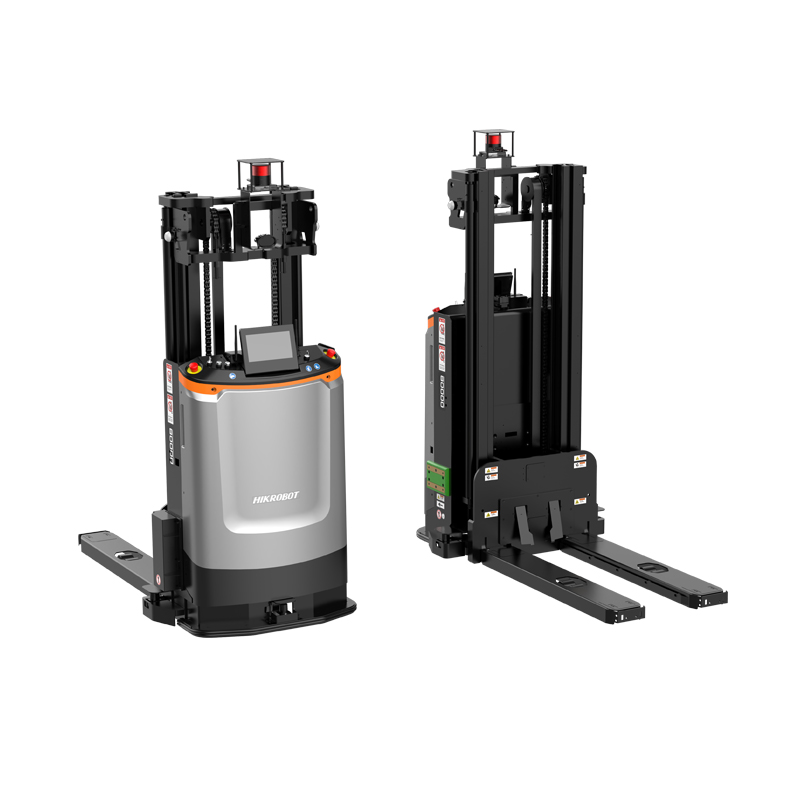

F4-2000 (4.5m) Forklift Mobile Robot (FMR)

Rated load (kg)

Fork lifting height (h3+h13) (mm)

2065

Min. aisle width (Ast) (mm)

3D/LSLAM

Navigation Mode

Product Details

Basic Parameter	Dimension (L × W × H) (mm)	191410092219
	Weight (with battery) (kg)	1320
	Rated load (kg)	2000
	Load center distance (C) (mm)	600
	Fork lifting height (h3+h13) (mm)	4517
	Fork above ground after lowering (h13) (mm)	87
	Fork dimension (s/e/l) (mm)	75/200/1220
	Fork outer width (b5) (mm)	680
	Applicable pallet dimension (mm)	1200*1000
Motion Performance	Rated running speed (m/s)	1.2
	Positioning accuracy (mm)/(°)	±10/±1
	Min. rotation radius (Wa) (mm)	1400
	Motion method	Forward, backward, arc, rotate in place
	Min. aisle width (Ast) (mm)	2065
Battery Performance	Run time (h)	6-8
Battery Performance	Charging time (h)	≤ 2
Safety Configuration	Laser obstacle avoidance	Support
	Recorder	0ptional
	Bumper Strip Detection	Support
	Pallet in-position detection	Support
	Fork collision detection	Support
	Emergency stop button	Support
	Indication light	Support
	Sound and light alarm	Support
Other Functions	Human-machine interaction	Touchscreen
	Navigation Mode	L-SLAM/ 3D L-SLAM (Customizable)
	Fork size customization	Custom izable
	Pallet attitude recognition	Customizable
	Pallet binding recognition	Customizable
