- Empower Your Warehouse Efficiency
- Empower Your Warehouse Efficiency
Stacking series FMRs’ loading capacity is from 1,000kg to 3,000kg, with the maximum lifting height up to 4.5m. The innovative slim-profile design of the FMR body significantly minimizes the required operating aisle width, maximizing storage capacity and optimizing material space utilization. Featuring a distinctive robotic head design and modular architecture, 80% of its components are interchangeable across diverse applications, ensuring versatility and cost efficiency. The entire product line has achieved full CE certification, making it the top choice for advanced logistics solutions in demanding environments.
2062
3D/LSLAM
Key Features
Unmatched Operational Excellence
• Rapid Material Transport: Achieve consistent speeds of 1.5 m/s for accelerated workflow efficiency.
• Dynamic Load Adaptability: Modular design supports payloads from 300 kg to 1,400 kg for diverse industrial demands.
• 360° Safety Assurance: Advanced 3D environmental sensing detects obstacles and adapts to complex layouts.
• Ultra-Precise Navigation: Hybrid laser-vision positioning ensures millimeter-level accuracy for error-free operations.
Comprehensive Functional Capabilities
• Smart Pallet Recognition: Auto-adjust forks to accommodate misaligned or offset carriers.
• Intelligent Storage Mapping: Automatically identifies rack availability, cargo height, and positional deviations.
• Proactive Hazard Detection: Identifies overhead obstructions and ground-level obstacles for uninterrupted workflows.
Scalable Solutions for Every Challenge
• Multi-Format Warehousing: Optimized for tiered storage, dense stacking, and deep-lane configurations.
• Universal System Integration: Seamlessly interfaces with AMRs, elevators, conveyor belts, and automated gate systems.
• All-in-One Material Handling: Compatible with global pallet standards, cages, roll containers, barrels, and custom-shaped cargo.
Engineered for Industry 4.0 Success
Designed to streamline warehouse operations, these adaptive AMRs enhance throughput, reduce downtime, and future-proof logistics infrastructure.
Application Case
|

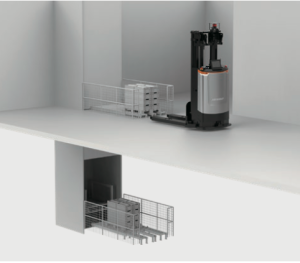

Upper and lower floor transferring |

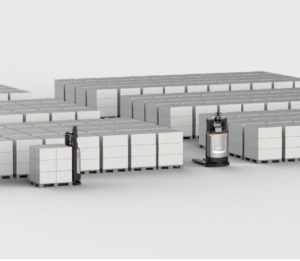

Deep storage warehouse |
 |
 |
| Basic Parameter |
Dimension (L × W × H) (mm) | 1692*990*1983 |
| Weight (with battery) (kg) | 820 | |
| Rated load (kg) | 1000 | |
| Load center distance (C) (mm) | 600 | |
| Fork lifting height (h3+h13) (mm) | 2031 | |
| Fork above ground after lowering (h13) (mm) |
81 | |
| Fork dimension (s/e/l) (mm) | 65/180/1233 | |
| Fork outer width (b5) (mm) | 680 | |
| Applicable pallet dimension (mm) | 1200*1000 | |
| Motion Performance | Rated running speed (m/s) | 1.2 |
| Positioning accuracy (mm)/(°) | ±10/±1 | |
| Min. rotation radius (Wa) (mm) | 1183 | |
| Motion method | Forward, backward, arc,rotate in place | |
| Min. aisle width (Ast) (mm) | 2062 | |
| Battery Performance | Run time (h) | 6-8 |
| Charging time (h) | ≤ 2 | |
| Safety Configuration | Laser obstacle avoidance | Support |
| Recorder | Optional | |
| Bumper Strip Detection | Support | |
| Pallet in-position detection | Support | |
| Fork collision detection | Support | |
| Emergency stop button | Support | |
| Indication light | Support | |
| Sound and light alarm | Support | |
| Other Functions | Human-machine interaction | Touchscreen |
| Navigation Mode | L-SLAM/ 3D L-SLAM (Customizable) | |
| Fork size customization | Customizable | |
| Pallet attitude recognition | Customizable | |
| Pallet binding recognition | Customizable |
